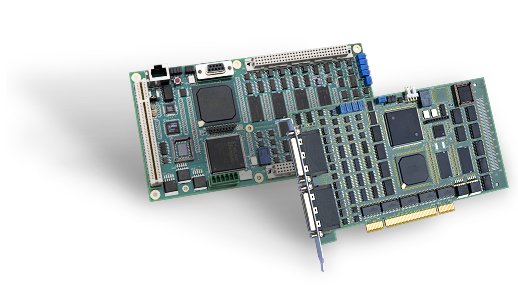

MultiFlex Family - Motion and I/O Control Hardware

Available Hardware Resources:

• Advanced 64-bit floating-point RISC CPU
• High-capacity customizable FPGA
• 32 MB DRAM memory on-board
• 4 analog ouptut channels (16 bit) (MultiFlex PCI and ETH 1440 models)
• 8 analog ouptut channels (16 bit) (MultiFlex ETH 1800 and 1840 models)
• 8 buffered differential encoder input channels with hardware failure detection circuitry
• 20 high-current open-collector output channels (4-24 Volts)
• 8 additional high-current open-collector output channels (4-24 Volts) (optional for the MultiFlex ETH 1800 and 1840 models when using the ICN-125 interconnection board)
• 16 bi-directional opto-isolated digital input channels (4-24 Volts) (standard on all models)
• 16 additional bi-directional opto-isolated digital input channels (4-24 Volts) (optional for the MultiFlex ETH 1800 and 1840 models when using the ICN-125 interconnection board)
• 16 digital TTL inputs
• 16 digital TTL outputs
• 32 additional TTL I/O (MultiFlex Ethernet series via I/O expansion connector)
• 8 analog input channels (14 bit) (optional for all models)
• 28 Ground lines (analog and digital)
• 8 12V supply lines
• 40 5V supply lines
• Jumperless configuration of all I/O
• A total of 264 I/O signals - all conveniently available on industry-standard connectors
• I/O expansion connector for additional analog or digital I/O via custom daughtercards
• The default function for each digital I/O channel can be re-assigned by the user via software (no hardware jumpers needed)
